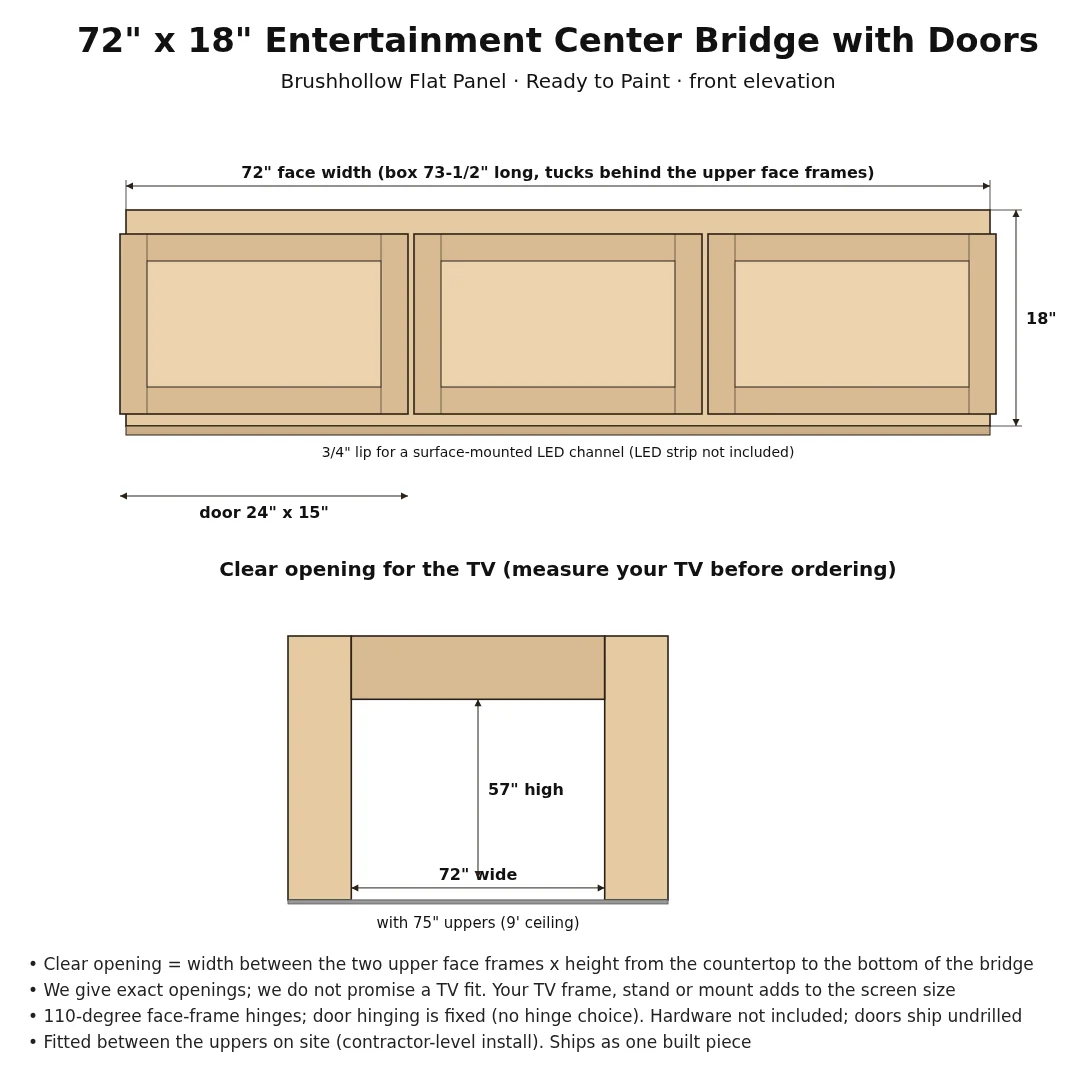

Spec drawing. Dimensions in inches. Clear openings shown; measure your TV before ordering.
Pulls shown for styling only. Hardware not included; doors ship undrilled.
72" x 18" Entertainment Center Bridge with Doors - Brushhollow Flat Panel
Paint: RecommendedStain: Not recommended
About this bridge
This 72" wide, 18" tall bridge is made for our 75" uppers on a 9' ceiling. It spans the top of your TV wall with a row of flat-panel Shaker doors across three bays, and its top lines up with the tops of the uppers. It ships as one built piece. It is sanded and ready for your paint, and it is fitted between the uppers on site as a contractor-level install.
Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only.
TV opening
Typical TV sizes (approximate screen dimensions without stand, 16:9 screens, rounded to the nearest 1/2")
| Screen size (diagonal) | Approx. screen width | Approx. screen height |
|---|---|---|
| 50" | 43-1/2" | 24-1/2" |
| 55" | 48" | 27" |
| 65" | 56-1/2" | 32" |
| 75" | 65-1/2" | 37" |
| 85" | 74" | 41-1/2" |
| 98" | 85-1/2" | 48" |
| 100" | 87" | 49" |
These are screen dimensions only. Your TV's frame, stand or wall mount adds to them. Measure your TV before ordering; sizes vary by brand and model.
Specifications
| Clear opening for the TV: 72" wide, 57" high above the countertop (between 75" uppers, 9' ceiling) | |
| Size | 72" face width x 12" deep x 18" tall |
|---|---|
| Cabinet box | 73-1/2" long, ships as one piece; the box tucks behind the upper face frames, so there are no extra end stiles |
| Top of bridge | 105" off the floor, flush with 75" uppers |
| Three equal bays, each 23" wide, 14" tall, with 1-1/2" face frame mullions and single 3/4" dividers behind them | |
| Three single 24" wide doors, one per bay, all 15" tall | |
| Doors | flat-panel Shaker doors, about 3/4" thick, with poplar stiles and rails (2-1/4" wide), 1/2" overlay, with a 1/8" gap wherever two doors meet |
| Hinges | 110-degree face-frame hinges. The outer doors hinge on the outer ends, and the center door hinges on the left divider (fixed; no hinge choice) |
| Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only. | |
| Center panel | 1/4" MDF flat panel |
| No adjustable shelf; 15-3/4" clear inside height | |
| Face frame | poplar, 2-1/2" top rail and 1-1/2" bottom rail. The installer trims the rails to fit on site |
| 3/4" lip along the underside, designed for a surface-mounted LED channel over the TV. The LED strip is not included | |
| Depth | 12" to the face of the frame, flush with the upper faces |
| Mounting | screws through the upper sides, and the hidden rear nailers screw to wall studs |
| Install | fitted between the uppers on site. This is a contractor-level install |
| Box | 3/4" 13-ply Baltic birch plywood |
| Back | 1/4" birch plywood set in dados, with the nailers hidden behind it (no visible interior nailers) |
| Ships sanded flat to 120 grit, ready to paint | |
| Approximate shipping weight | 85 lb |
| Approximate carton size | 76" x 15" x 20" (W x D x H) |
| Ships in | 1 carton (76 x 15 x 20 in, L x W x H) |
| Shipping weight | 85 (estimate) |
| SKU | ENT-BR18-72-FLAT |
Specifications as of October 2026. Delivery is priced by the mile in the cart.
Before you buy
This cabinet ships unfinished. Rough-sanded flat to 120 grit with major blemishes filled. You finish-sand before priming and painting.
Checkout requires accepting our Self-Finishing Agreement.
Inspect within 72 hours of delivery. Shipping & Delivery
