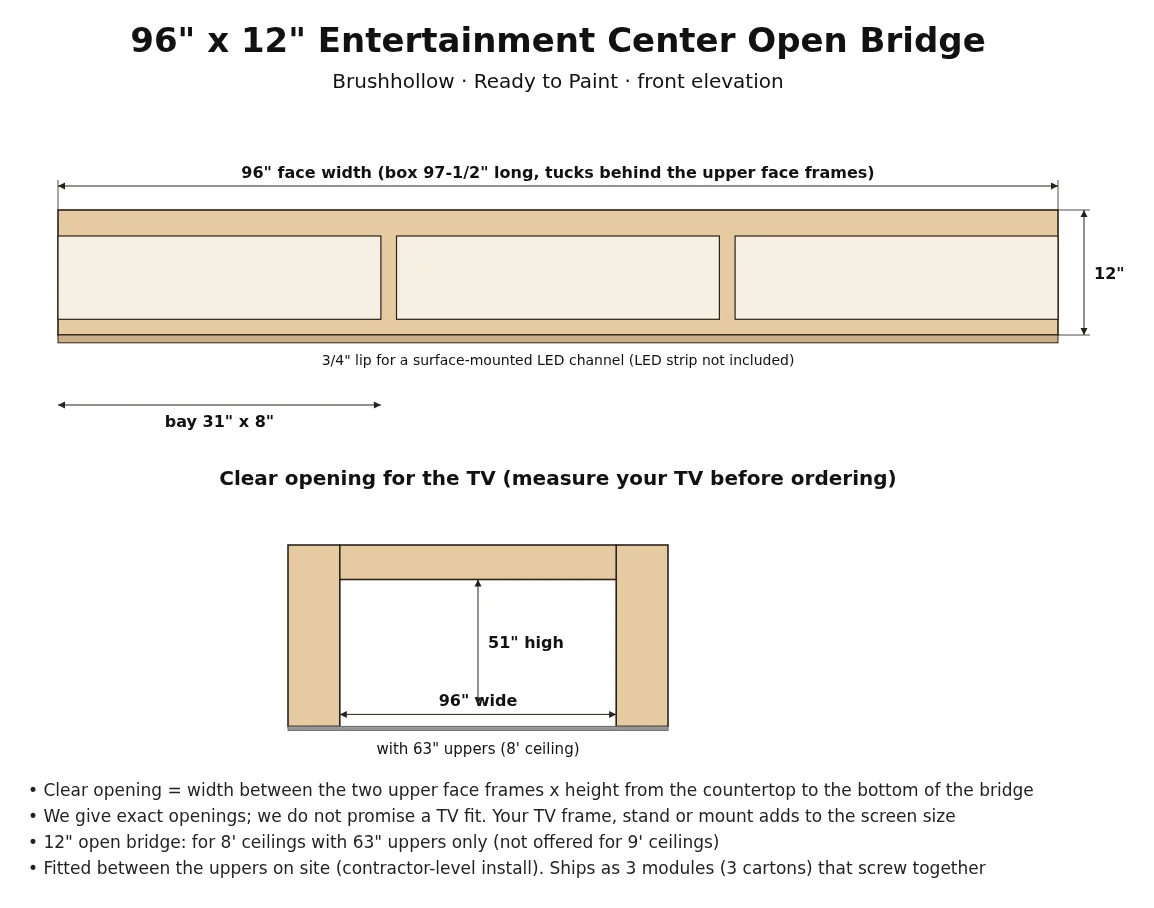

Spec drawing. Dimensions in inches. Clear openings shown; measure your TV before ordering.
96" x 12" Entertainment Center Open Bridge - Brushhollow
Paint: RecommendedStain: Not recommended
About this bridge
This 96" wide, 12" tall open bridge spans the top of your TV wall between two uppers. Three open bays give you a spot for a center speaker, soundbar or small electronics, and the shorter height leaves a taller opening for the TV. Its top lines up with the tops of the uppers. It is made for our 63" uppers on an 8' ceiling (it is not offered for 9' ceilings). It ships as 3 modules that screw together. It is sanded and ready for your paint, and it is fitted between the uppers on site as a contractor-level install.
Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only.
TV opening
Typical TV sizes (approximate screen dimensions without stand, 16:9 screens, rounded to the nearest 1/2")
| Screen size (diagonal) | Approx. screen width | Approx. screen height |
|---|---|---|
| 50" | 43-1/2" | 24-1/2" |
| 55" | 48" | 27" |
| 65" | 56-1/2" | 32" |
| 75" | 65-1/2" | 37" |
| 85" | 74" | 41-1/2" |
| 98" | 85-1/2" | 48" |
| 100" | 87" | 49" |
These are screen dimensions only. Your TV's frame, stand or wall mount adds to them. Measure your TV before ordering; sizes vary by brand and model.
Specifications
| Clear opening for the TV: 96" wide, 51" high above the countertop (between 63" uppers, 8' ceiling) | |
| On 8' ceilings, this is our tallest bridge opening. Without a bridge, the space between towers is open above the countertop. Towers are 63" tall (8' ceilings) or 75" (9' ceilings) above the countertop. Measure your TV before ordering; sizes vary by brand and model. | |
| Size | 96" face width x 12" deep x 12" tall |
|---|---|
| Cabinet box | ships as 3 modules, each 32-1/2" wide, that screw together; the box tucks behind the upper face frames, so there are no extra end stiles |
| Top of bridge | 93" off the floor, flush with 63" uppers |
| Three open bays, each 31" wide x 8" tall at the face frame (9-3/4" clear inside), with single 3/4" dividers; no doors | |
| Face frame | poplar, 2-1/2" top rail and 1-1/2" bottom rail. The installer trims the rails to fit on site |
| 3/4" lip along the underside, designed for a surface-mounted LED channel over the TV. The LED strip is not included | |
| Depth | 12" to the face of the frame, flush with the upper faces |
| Mounting | screws through the upper sides, and the hidden rear nailers screw to wall studs |
| Install | fitted between the uppers on site. This is a contractor-level install |
| Box | 3/4" 13-ply Baltic birch plywood |
| Back | 1/4" birch plywood set in dados, with the nailers hidden behind it (no visible interior nailers) |
| Ships sanded flat to 120 grit, ready to paint | |
| Approximate shipping weight | 81 lb total, in 3 cartons of about 27 lb each |
| Approximate carton size | 3 cartons (one per module), each 35" x 14" x 14" (W x D x H) |
| Ships in | 3 cartons (35 x 14 x 14 (x3) in, L x W x H) |
| Shipping weight | 81 total (3 @ 27) (estimate) |
| SKU | ENT-BR12-96 |
Specifications as of October 2026. Delivery is priced by the mile in the cart; this item counts as 3 pieces for delivery.
Before you buy
This cabinet ships unfinished. Rough-sanded flat to 120 grit with major blemishes filled. You finish-sand before priming and painting.
Checkout requires accepting our Self-Finishing Agreement.
Inspect within 72 hours of delivery. Shipping & Delivery
