16' Entertainment Wall Layout, 9' Ceiling - Brushhollow

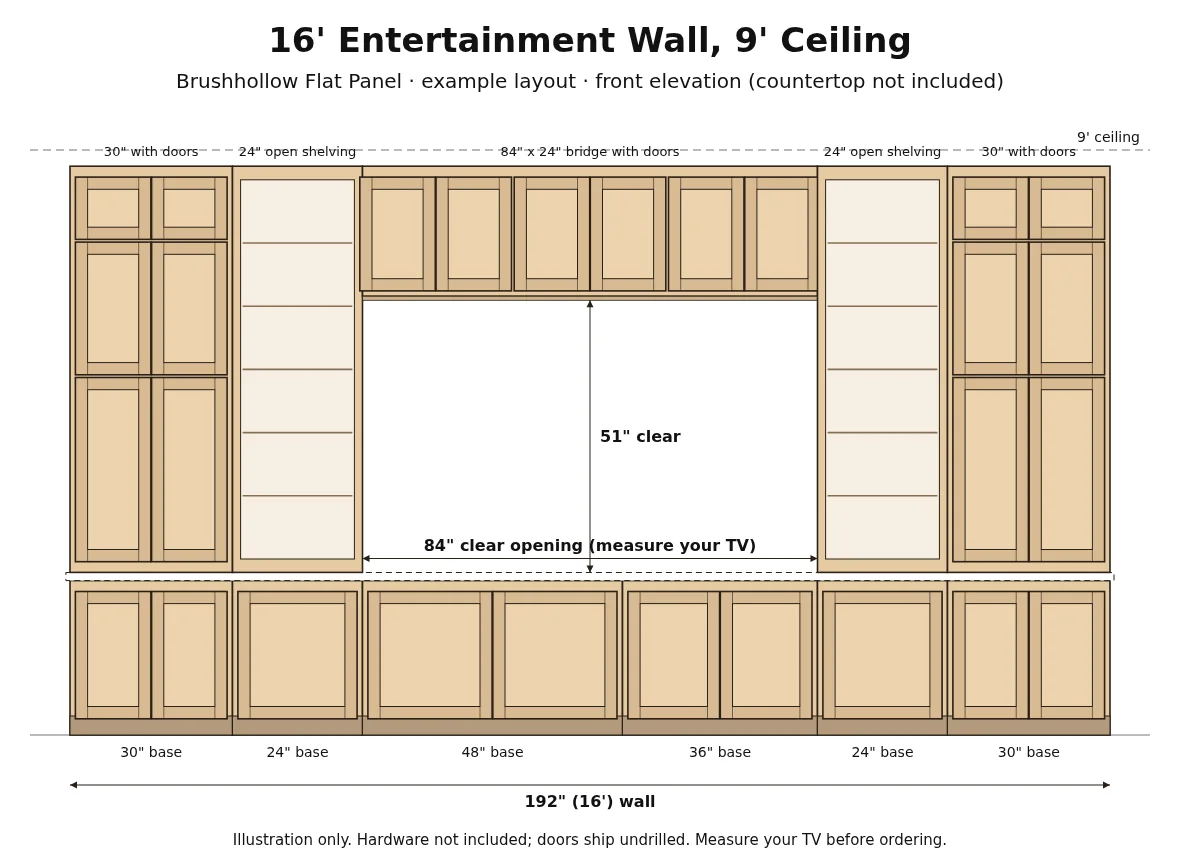

Illustration. Hardware not included; doors ship undrilled. Measure your TV before ordering.
A 16' wall for a 9' ceiling that mixes closed and open storage: a door upper and an open shelving upper on each side, with an 84" wide, 24" tall bridge with doors over the TV. The bases and uppers arrive built and sanded, ready for your paint, with nothing to assemble. The bridge is fitted between the uppers on site, as a contractor-level install.
What's included
| Qty | Item | Each | Line |
|---|---|---|---|
| 2 | 24" Entertainment Center Base - Brushhollow Flat Panel SKU ENT-BASE-24-FLAT | $299 | $598 |
| 2 | 30" Entertainment Center Base - Brushhollow Flat Panel SKU ENT-BASE-30-FLAT | $409 | $818 |
| 1 | 36" Entertainment Center Base - Brushhollow Flat Panel SKU ENT-BASE-36-FLAT | $429 | $429 |
| 1 | 48" Entertainment Center Base - Brushhollow Flat Panel SKU ENT-BASE-48-FLAT | $469 | $469 |
| 1 | 84" x 24" Entertainment Center Bridge with Doors - Brushhollow Flat Panel SKU ENT-BR24-84-FLAT | $889 | $889 |
| 2 | 30" x 75" Entertainment Center Upper with Doors - Brushhollow Flat Panel SKU ENT-UP75-DOOR-30-FLAT | $929 | $1,858 |
| 2 | 24" x 75" Entertainment Center Upper, Open Shelving - Brushhollow SKU ENT-UP75-OPEN-24 | $289 | $578 |
| Layout total (pieces only) | $5,639 | ||
Countertop not included. Delivery is priced by the mile in the cart. Add each piece from its own page; hinge side is chosen on single-door units.
Specs
- Clear opening for the TV: 84" wide, 51" high above the countertop
- Wall width: 192" (16'), for a 9' ceiling
- Countertop: not included (buyer supplies). The bases are 28-1/2" tall and designed for a continuous 1-1/2" top (30" total), and the uppers sit on it
- Overall height: 105" to the top of the uppers and bridge. That leaves a 3" gap below the ceiling, which the buyer trims; trim is not included
- Uppers: 75" tall, 12" deep; bases 28-1/2" tall and 18" deep, designed for a 1-1/2" top (30" total)
- Doors: flat-panel Shaker doors (1/4" MDF panels) throughout
- Hinges: 110-degree face-frame hinges on every door
- Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only.
- Uppers, left to right: 30" upper with doors | 24" open shelving upper | 84" x 24" bridge with doors | 24" open shelving upper | 30" upper with doors
- Bases, left to right: 30" base | 24" base | 48" base | 36" base | 24" base | 30" base
- Maximum equipment depth in the bases: 16-1/4" (inside depth)
- Each base has one 2-1/2" cord hole with a grommet in the back, centered on the width, with its center 23" off the floor
- The bases are 18" deep, so check the depth of your TV stand or legs as well, or plan to wall-mount the TV
- Where two uppers stand side by side, their face frame stiles meet to form a 3" double stile, the same as where the bases meet
TV opening
Typical TV sizes (approximate screen dimensions without stand, 16:9 screens, rounded to the nearest 1/2")
| Screen size (diagonal) | Approx. screen width | Approx. screen height |
|---|---|---|
| 50" | 43-1/2" | 24-1/2" |
| 55" | 48" | 27" |
| 65" | 56-1/2" | 32" |
| 75" | 65-1/2" | 37" |
| 85" | 74" | 41-1/2" |
| 98" | 85-1/2" | 48" |
| 100" | 87" | 49" |
These are screen dimensions only. Your TV's frame, stand or wall mount adds to them. Measure your TV before ordering; sizes vary by brand and model.
